Deltoid Ligament

From WikiSM

Description

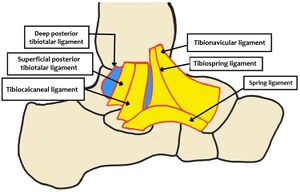

Anatomic illustration of the deltoid ligament and other medial ligaments of the foot and ankle
The branches of the deltoid ligament of the ankle[1]

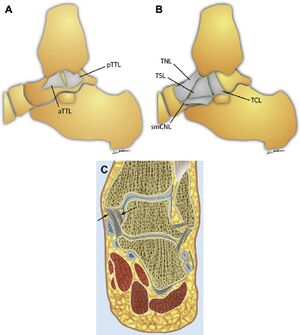

Deltoid ligament complex . ( A ) The deep layer of the deltoid ligament complex consists of the aTTL and the pTTL. ( B ) The superficial layer consists of the TNL, TSL, and TCL. The TSL, which is often the only visible superficial deltoid component, converges with the superomedial calcaneonavicular ligament (smCNL) component of the spring ligament complex at the level of the sustentaculum tali of the calcaneus. ( C ) Coronal illustration (illustrated by Salvador Beltran) showing the superficial ( solid arrow ) and deep ( dashed arrow ) layers of the deltoid ligament complex.[2]

Other Names

  • Deltoid Ligament
  • Medial Ankle Ligament
  • Deltoid Ligament Complex

General

  • Stabilizer of medial Ankle

Superficial Ligaments

Deep Ligaments

Anatomic variance

  • Wide variability in cadaveric descriptions[4]

Actions

  • Strong restraint which limits talar abduction[5]
  • Primary restraint against pronation of the talus[6]
  • Superficial ligaments limit talar abduction or negative talar tilt
  • Deep layers of the deltoid ligament limit external rotation

Vascular Supply

Innervation

Clinical Significance

See Also

References

  1. ↑ Al-Mohrej, Omar A., and Nader S. Al-Kenani. "Acute ankle sprain: conservative or surgical approach?." EFORT open reviews 1.2 (2016): 34-44.
  2. ↑ Nazarenko, Anna, Luis S. Beltran, and Jenny T. Bencardino. "Imaging evaluation of traumatic ligamentous injuries of the ankle and foot." Radiologic Clinics 51.3 (2013): 455-478.
  3. ↑ Boss AP, Hintermann B. Anatomical study of the medial ankle ligament complex. Foot Ankle Int 2002;23:547–53.
  4. ↑ Milner CE, Soames RW. The medial collateral ligaments of the human ankle joint: anatomical variations. Foot Ankle Int 1998;19:289–92.
  5. ↑ Grath G. Widening of the ankle mortise. A clinical and experimental study. Acta Orthop Scand 1960;263(Suppl):1–88.
  6. ↑ Harper MC. Deltoid ligament: an anatomical evaluation of function. Foot Ankle 1987;8: 19–22.
  7. ↑ Haynes JA, Gosselin M, Cusworth B, McCormick J, Johnson J, Klein S. The Arterial Anatomy of the Deltoid Ligament: A Cadaveric Study. Foot Ankle Int. 2017 Jul;38(7):785-790.
