Accessory Bones of the Foot and Ankle

From WikiSM
(Redirected from Accessory Bones of the Foot)

Introduction

  • Illustration of sesamoids[1]
    Illustration of sesamoids[1]
  • Illustration of accessory bones, lateral view of foot and ankle.[1]
    Illustration of accessory bones, lateral view of foot and ankle.[1]
  • 1 - os subfibulare; 2 - os subtibiale; 3 - os talotibiale; 4 - os trigonum; 5 - os supratalare; 6 - os talus accessories; 7 - os talus secundarius; 8 - os calcanei accessorium; 9 - os calcanei secundarium; 10 - os sustentaculi; 11 - os subcalcis; 12 - os aponeurosis plantaris; 13 - accessory navicular bone; 14 - os supranaviculare ; 15 - os infranaviculare; 16 - os paracuneiforme; 17 - os intercuneiforme; 18 - os cuneometatarsale I tibiale; 19 - os cuneo–I metatarsale-II dorsale; 20 - os cuneometatarsale plantare; 21 - os intermetatarseum; 22 - os peroneum; 23 - os cuboideum secundarium; 24 - os vesalianum[2]
    1 - os subfibulare; 2 - os subtibiale; 3 - os talotibiale; 4 - os trigonum; 5 - os supratalare; 6 - os talus accessories; 7 - os talus secundarius; 8 - os calcanei accessorium; 9 - os calcanei secundarium; 10 - os sustentaculi; 11 - os subcalcis; 12 - os aponeurosis plantaris; 13 - accessory navicular bone; 14 - os supranaviculare ; 15 - os infranaviculare; 16 - os paracuneiforme; 17 - os intercuneiforme; 18 - os cuneometatarsale I tibiale; 19 - os cuneo–I metatarsale-II dorsale; 20 - os cuneometatarsale plantare; 21 - os intermetatarseum; 22 - os peroneum; 23 - os cuboideum secundarium; 24 - os vesalianum[2]
  • Accessory bones: Os Intermetatarseum, Os Supranaviculare, Os Naviculare, Os Supratalare, Os Vesalianum, Os Peroneum, Os Calcaneus Secundarium, Os Trigonum[3]
    Accessory bones: Os Intermetatarseum, Os Supranaviculare, Os Naviculare, Os Supratalare, Os Vesalianum, Os Peroneum, Os Calcaneus Secundarium, Os Trigonum[3]

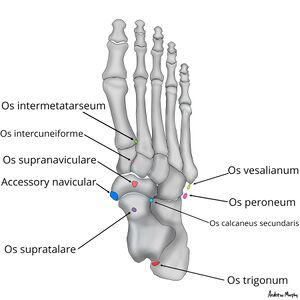

Illustration of accessory bones of the foot[4]
Sesamoids of the foot. AP radiograph depicting the sites of hallucal (1), interphalangeal joint (2) and lesser metatarsal (3) sesamoids[5]
Hallucal sesamoids. Axial view radiograph of the forefoot shows normal hallucal sesamoids (arrows) and their articulation with the first metatarsal head (asterisk)[5]
Bipartite hallucal sesamoid. The bipartite fragments of the medial hallucal sesamoid are shown. Unlike a normal bipartite sesamoid, the fragments do not fit together perfectly like the pieces of a puzzle[5]
Accessory ossicles of the foot. AP (a), oblique (b) and lateral (c) radiographs depicting the sites of the most common accessory ossicles in the foot. 1 Os trigonum, 2 os peroneum, 3 os naviculare, 4 os intermetatarseum, 5 os vesalianum 6 os supranaviculare, 7 os supratalare, 8 os talotibiale, 9 os calcaneus secundarium[5]

General

  • Accessory ossicles and sesamoids of the feet are common anatomic variants
  • They vary widely in their prevalence and appearance
  • Symptomatic accessory and sesamoid bones are rare

Definitions

  • Ossicle: accessory bone that is usually a normal variant with no known function
  • Sesamoid: small flat bone usually embedded in a tendon or joint capsule

Sesamoid Bones

  • Hallucal Sesamoids
    • Always present on the plantar aspect of the first metatarsal head
    • Medial sesamoid can show bipartite variation[6]
  • Lesser Metatarsal Sesamoids
    • Can occur from the 2nd to the 5th metatarsal
    • Appear embedded in the plantar aspect of the joint capsule
    • May be multiple or multipartite
    • Prevalence: second (0.4%), third (0.2%), fourth (0.1), fifth (4.3%)[7]
    • Pathology associated with these is rare
  • Interphalangeal Joint Sesamoid of the Great Toe
    • Occurs at the plantar aspect of the interphalangeal joint of the first digit
    • Embedded within the joint capsule
    • Presence can alter biomechanics, limit motion[8]
    • Prevalence reported between 2 and 13%, however post mortem studies up to 73%[9]
    • It can be traumatically interposed into a dislocated IP joint, making it irreducible

Ossicles

General

  • Most common: os trigonum, os peroneum and os naviculare[10]
  • Less common: os intermetatarseum, os vesalianum, os supranaviculare, os supratalare, os talotibiale and os calcaneus secundarium

Os Trigonum

Os Peroneum

  • Located in the cuboid tunnel, near the calcaneocuboid joint, embedded in peroneus longus tendon
  • Present in everyone in cartilage form, ossicle forms in 26% of population[12]
  • Bipartite 30% of the time, bilaterally 60% of the time[12]
  • Can become painful and symptomatic

Os Naviculare

  • Also terrmed accessory naviculare
  • There are three morphologies/ variants
  • Second most common accessory bone of the foot, prevalence 2 to 21%[13]
  • Bilateral in 50% of cases

Os Intermetatarseum

  • Most commonly located between the first and second metatarsal
  • Radiographic studies show prevalence of 1-7%, cadaveric studies up to 13%
  • Rarely has associated pathology
  • May be confused as a fracture (such as in a lisfranc injury)

Os Vesalianum

Os Supranaviculare, Os Supratalare and Os Talotibiale

  • Rare series of ossicles located dorsal to talus[15]
  • Os supranaviculare can fuse with navicular
  • Rarely associated with painful conditions

Os Calcaneus Secundarium

  • Between the anteromedial aspect of the calcaneus, cuboid, the talar head, navicular
  • Incidence reported between 0.6% and 7%[16]
  • Difficult to see on xray, seen on CT
  • Has not been shown to be clinically relevant

Os Subfibulare

  • Accessory ossicle that lies at the tip of the lateral malleolus
  • Typically asymptomatic and incidental finding

Os Subtibiale

  • Rare accessory ossicle found at the posterior colliculus of the medial malleolus[17]
  • Typically asymptomatic and incidental finding

Pathological Conditions

Trauma

  • Can simulate fracture of neighboring bone or fracture themselves
  • Radiographic findings
    • Due to small size, can be difficult to identify radiographically
    • Acute: well corticated with smooth borders
    • Fracture: irregular fragment with poorly corticated margins
  • Additional clues
    • Evidence of displacement
    • Presence/ absence of donor site
    • Soft tissue swelling
  • hallucual sesamoids more prone to fracture, medial > lateral[18]

Sesamoiditis

  • Characterized by chronic pain at the hallucal sesamoids
  • May be due to stress fracture, stress reaction, osteoarthritis, osteonecrosis, tendinosis, capsular inflammation

Infectious

  • Osteomyelitis most commonly occurs due to direct extension
  • For example, sesamoid hallux may be infected secondary to extension from soft tissue infection or septic arthritis

Degenerative Disease

  • Hallucal sesamoids articulate with metatarsal head, susceptible to osteoarthritis
  • Findings: loss of joint space, subchondral sclerosis and cysts, and osteophyte formation

Clinical Significance

See Also

References

  1. ↑ 1.0 1.1 Kobashi, Y., Y. Tazawa, and S. Suzuki. "Disorders of the accessory bones and sesamoids of the foot and ankle." European Congress of Radiology-ECR 2010, 2010.
  2. ↑ Keles-Celik, Nigar, et al. "Accessory ossicles of the foot and ankle: disorders and a review of the literature." Cureus 9.11 (2017).
  3. ↑ Osiowski, Aleksander, et al. "The prevalence and clinical considerations of Os Vesalianum Pedis: A meta-analysis." Foot and Ankle Surgery (2025).
  4. ↑ Case courtesy of Andrew Murphy, Radiopaedia.org, rID: 99467
  5. ↑ 5.0 5.1 5.2 5.3 Nwawka, O. Kenechi, et al. "Sesamoids and accessory ossicles of the foot: anatomical variability and related pathology." Insights into imaging 4 (2013): 581-593.
  6. ↑ Munuera, Pedro V., et al. "Bipartite hallucal sesamoid bones: relationship with hallux valgus and metatarsal index." Skeletal radiology 36 (2007): 1043-1050.
  7. ↑ Coskun, Nigar, et al. "Incidence of accessory ossicles and sesamoid bones in the feet: a radiographic study of the Turkish subjects." Surgical and radiologic anatomy 31 (2009): 19-24.
  8. ↑ Roukis, Thomas S., and Jeffrey S. Hurless. "The hallucal interphalangeal sesamoid." The Journal of foot and ankle surgery 35.4 (1996): 303-308.
  9. ↑ Davies, M. B., and S. Dalal. "Gross anatomy of the interphalangeal joint of the great toe: implications for excision of plantar capsular accessory ossicles." Clinical Anatomy: The Official Journal of the American Association of Clinical Anatomists and the British Association of Clinical Anatomists 18.4 (2005): 239-244.
  10. ↑ Lawson, Jack P. "International Skeletal Society Lecture in honor of Howard D. Dorfman. Clinically significant radiologic anatomic variants of the skeleton." AJR. American journal of roentgenology 163.2 (1994): 249-255.
  11. ↑ Karasick, David, and Mark E. Schweitzer. "The os trigonum syndrome: imaging features." AJR. American journal of roentgenology 166.1 (1996): 125-129.
  12. ↑ 12.0 12.1 Sobel, Mark, et al. "Painful os peroneum syndrome: a spectrum of conditions responsible for plantar lateral foot pain." Foot & Ankle International 15.3 (1994): 112-124.
  13. ↑ Stoller, D. W. Magnetic resonance imaging in orthopaedics and sports medicine. Lippincott Williams & Wilkins, 2007.
  14. ↑ Boya, Hakan, et al. "Os vesalianum pedis." Journal of the American Podiatric Medical Association 95.6 (2005): 583-585.
  15. ↑ Tsuruta, T., et al. "Radiological study of the accessory skeletal elements in the foot and ankle (author's transl)." Nihon Seikeigeka Gakkai Zasshi 55.4 (1981): 357-370.
  16. ↑ Mellado, J. M., et al. "Accessory ossicles and sesamoid bones of the ankle and foot: imaging findings, clinical significance and differential diagnosis." European radiology 13 (2003): L164-L177.
  17. ↑ Coral A. The radiology of skeletal elements in the subtibial region: incidence and significance. Skeletal Radiol. 1987;16 (4): 298-303.
  18. ↑ Karasick, David, and Mark E. Schweitzer. "Disorders of the hallux sesamoid complex: MR features." Skeletal radiology 27 (1998): 411-418.
