Tarsal Coalition

From WikiSM

Other Names

  • Talocalcaneal coalition
  • Calcaneonavicular coalition
  • Peroneal spastic flatfoot

Background

  • This page refers to abnormal connections of the tarsal bones, commonly referred to as 'tarsal coalition'

History

  • First described by Buffon in 1750 or 1769 (need citation)
  • In 1948, Harris and Beath were the first to identify tarsal coalition as a cause of painful and rigid pes planovalgus[1]

Epidemiology

  • Prevalence
    • Estimated to be between 1% and 13% of the population[2]
    • Likely under-reported due to vast majority being asymptomatic
    • Appear bilaterally in 50% - 68% of all cases, 20% have multiple coalitions[3]
    • Solomon found a prevalence of non-osseous coalition to be 12.75 in a cadaveric study[4]

Introduction

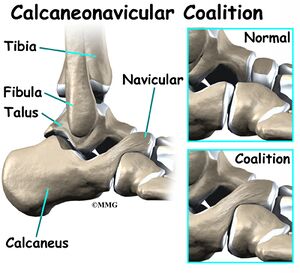

Illustration of calcaneonavicular coalition[5]
Illustration of talocalcaneal coalition[6]
Illustration of calcaneonavicular coalition[7]

osseous cubonavicular coalition (arrowheads) with an absence of joint space.[8]]]

General

  • Definition: abnormal osseous, cartilaginous or fibrous connection between two or more tarsal bones
  • Due to a failure of differentiation and segmentation of primitive mesenchyme into the distinct tarsal bones
  • The coalition can be bony (synostosis), cartilaginous (synchondrosis), or fibrous (syndesmosis)
  • May involve fusion of the accessory ossicles[9]
  • It is an often unrecognized cause of foot and ankle pain

Natural History

  • Majority are cartilaginous at birth and are therefore asymptomatic
  • Evidence suggests coalitions remain asymptomatic into adulthood[10]
  • When symptoms arise, thought to be a result of microfractures of the coalition and inflammation of the surrounding soft tissue from repetitive overload[11]
  • Age of presentation varies, depending on which bones are involved
  • Appears to be approximately 3--4 years after ossification of the coalition

Location

  • General
    • Talocalcaneal and calcaneonavicular coalitions are its most common subtypes, represent about 90% of junctions[3]
  • Talocancaneal
    • Most common, affecting 48% of the patients[3]
    • Commonly concerns the middle subtalar facet[12]
    • Rarely involves he anterior and posterior facets
  • Calcaneonavicular
    • Other investigators have reported a nearly equal prevalence of talocalcaneal and calcaneonavicular coalitions[13]
    • More readily diagnosed with conventional radiography, which may contribute to their reported higher prevalence
  • Talonavicular
  • Calcaneocuboid
  • Naviculocuneiform
  • Cubonavicular

Etiology

  • Thought to be due to a failure of segmentation of primitive mesenchyme during development[14]
  • Genetics
    • There may be an autosomal dominant pattern of inheritance of a coalition[15]
    • Pro250Arg mutation in the fibroblast growth factor receptor 3 (FGFR3) gene has been associated[16]
  • Acquired
    • May occur due to may occur because of degenerative joint diseases
    • Examples: inflammatory arthritis, fibular hemimelia, congenital talipes equinovarus, Apert syndrome, arthrogryposis, and Nievergelt--Pearlman syndrome

Associated Conditions

  • Pes Planus
  • Other congenital malformations
    • Including carpal fusions, carpal synostosis with radial head subluxation, symphalangism, and partial adactyly
  • Ankle Sprain

Pathoanatomy

Risk Factors

  • Slight male predominance[17]
  • Race

Differential Diagnosis

Differential Diagnosis Foot Pain

Clinical Features

Pictures demonstrate left hindfoot valgus that does correct into varus with double stance tiptoeing. This implies restricted movement of the subtalar joint complex.[19]

History

  • Symptoms initiate with the onset of ossification, calcaneonavicular (8-12 years), talocalcaneal (8-12 years), talonavicular (3-5 years)[20]
  • Mid-, hindfoot or tarsal pain, sometimes diffuse
  • Trouble walking on uneven surfaces
  • If there is a precipitating event, trauma, weight gain, or an increase in athletic activity
  • Pain is diffuse, exacerbates during physical activity, and may be triggered by minimal trauma[21]
  • Progressing to decreased range of motion, especially inversion/eversion of the subtalar joint
  • Rigid deformity is usually the end point

Physical Exam: Physical Exam Foot

    • Rigid pes planus, hindfoot valgus
    • Inability to roll onto lateral side of foot (secondary to rigid pes planus)
    • Tightness of peroneal muscles, long extensors which may be obvious dorsally
    • "Double medial malleolus" with talocalcaneal coalition[22]
    • Ankle range of motion is normal while subtalar range of motion is restricted

Special Tests

Evaluation

Lateral radiograph showing the C-sign, a primary sign for TCC (white arrows). This image also shows blunting of the lateral talar process (blue arrow).[19]

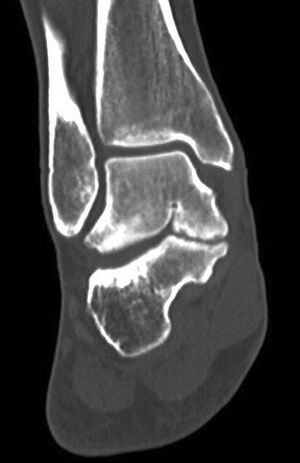

Coronal CT scan reconstruction of a fibrous middle facet TCC.[19]

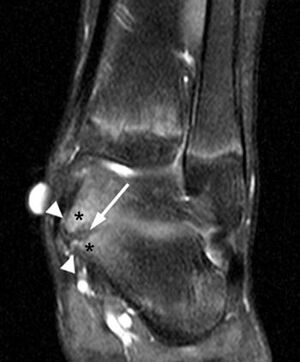

coronal fat suppressed PD-weighted image demonstrates a narrowed joint with subchondral bony irregularity (arrow), subcortical marrow edema (asterisks),and bony hypertrophy (arrowheads) at the far medial aspect of the posterior facet of the subtalar joint.[23]

Radiographs

  • Standard Radiographs Foot, Standard Radiographs Ankle
    • Initial imaging modality of choice
    • Views should include anteroposterior, lateral, oblique, and axial weight-bearing
  • Harris axial view (Harris-Beath)
    • Sometimes termed Harris projection or penetrated axial projection
    • Special radiographic view that is used for assessment of talocalcaneal coalition
    • X-ray beam is angled between 35 and 45 degrees
  • Calcaneonavicular coalitions
    • Best visualized on internal oblique 45° view
    • Coalition is seen in 90% of cases[24]
    • 'Anteater nose' sign is a characteristic finding
      • Initially described in the oblique view, better visualized on lateral view
      • Sensitivity 18-50%, specificity 100%[25][26]
  • Talocalcaneal coalitions
    • 'C' sign
      • C-shaped line composed of the medial dome of the talus and posteroinferior outline of the sustentaculum tali
      • Seen in lateral views, specific but not sensitive[27][28]
    • Absent middle facet may be a more accurate radiographic finding[29]
    • Dorsolateral talar beak
      • Thought to occur due to impaired subtalar joint motion, subsequently the navicular overrides the talus.
      • Periosteal elevation occurs at the insertion of the talonavicular ligament, a cycle of osseous leads to formation[30]
      • Alternatively, may occur due to peroneal spasm with repetitive dorsolateral overload, compression of the talar head
      • Note: may occur absent a tarsal coalition

MRI

  • More sensitive, more specific than xray
  • Also assesses for soft tissue injuries, bone edema

CT

  • Similar utility for osseous connections, but less for fibrous
  • offers a more precise evaluation of the site and size of coalition
  • Help determine determine surgical approach, i.e. resection, arthrodesis
  • Can exclude multiple coalitions and readily depicts associated degenerative changes[31]

Classification

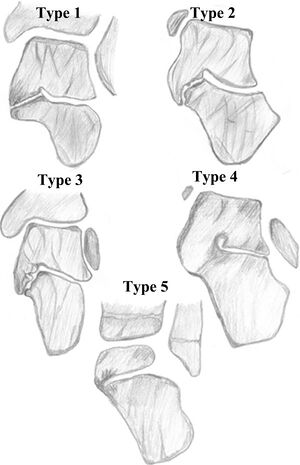

Classification of talocalcaneal coalitions based on 3D reconstruction of computer tomography by Rozansky et al[32]

Downey Classification

  • Considers joint involvement, arthrosis extension to help in recommending surgical therapy[33]
    • Type IA: extra-articular coalition without secondary arthritis
    • Type IB: intra-articular coalition with secondary arthritis
    • Type IIA: extra-articular coalition without secondary arthritis
    • Type IIB: intra-articular coalition with secondary arthritis

Rozansky Classification

  • Based on three-dimensional reconstructed computed tomography images[34]
    • Type I: linear coalitions (41%)
    • Type II: linear coalitions with posterior hook (17%)
    • Type III: shingled coalitions (15%)
    • Type IV: complete osseous coalitions (11%)
    • Type V: posterior coalitions (17%)

Short Walking Boot

Management

Nonoperative

  • Indications
    • Asymptomatic or incidentally discovered lesions
    • Most symptomatic lesions upon initial presentation
  • Initial therapy
    • NSAIDS
    • Shoe inserts
    • Activity modification
  • If symptoms persist, consider
    • Custom orthotics
    • Cast immobilization

Operative

  • Indications
    • Failure of conservative management
  • Objective
    • Achieve painless functional hindfoot movement without deformity
  • Technique
    • Subtalar or triple arthrodesis
    • Excision of coalition with or without interposition of fat or tendon

Rehab and Return to Play

Rehabilitation

  • Needs to be updated

Return to Play/ Work

  • Needs to be updated

Complications and Prognosis

Prognosis

  • Incidental or asymptomatic lesions
    • No evidence suggesting that asymptomatic coalition may lead to future problems[27]
  • Conservative vs surgical management
    • Calcaneonavicular coalitions respond less to conservative treatment than talocalcaneal coalitions[35]
  • Surgical outcomes
    • Mahan et al observed 73% of patients achieved good results, regardless of the type of coalition[36]
    • Khoshbin et al reevaluated patients after resection of calcaneonavicular and talocalcaneal coalitions, found that 85% of the patients did not require additional procedures[37]
    • Mosca showed 87% of patients achieved good results after talocalcaneal coalition resection[38]
  • Predictors of good outcome with conservative management (need citation)
    • Skeletal immaturity at presentation
    • Nonathletic patient
    • Ankylosed subtalar joint in neutral

Complications
